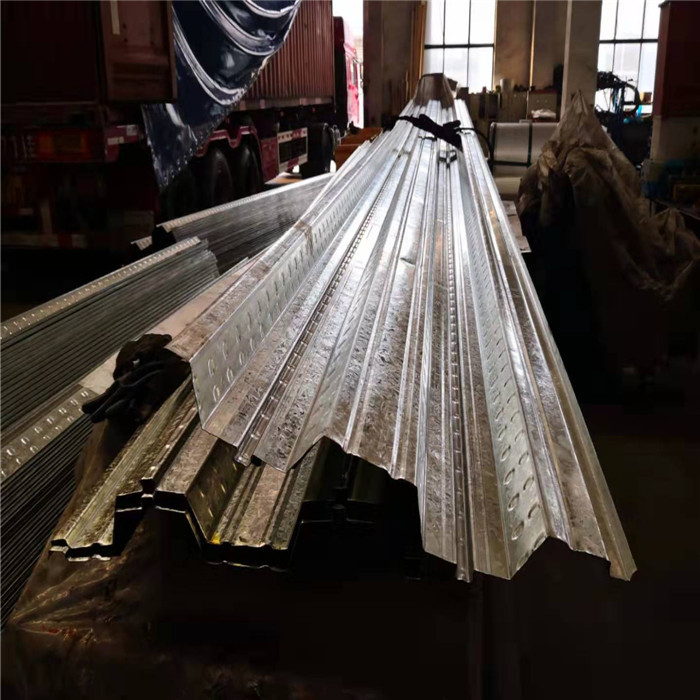

Galvanized Steel Composite Floor Deck 60 Profile 1mm Thick

All Category

Galvanized Steel Wire Rope & Strand

Vehicle Parts Accessories

Ms. Jenny Zhang

jenny@ch-honghao.com

0086 13018361393

Contact Now

Galvanized Steel Composite Floor Deck 60 Profile 1mm Thick

Brand Name:	FAMOUS
Model Number:	TR60
MOQ:	100
Price:	$15

Detail Information

Product Description

Detail Information

Place of Origin:

Zhejiang, China

Weight:

Material:

Galvanized Steel GB US EU AS Std.

Type:

Corrugated

Color:

White

Zinc Coating:

275g/m2

Surface:

Spangle

Thickness:

Steel Grade:

Yield Strength:

Q235 Or Q345

Wave Height:

51mm-76mm

Effective Width:

688mm-940mm

Length:

0-11.8m

Base Material:

Hot Dipped Galvanized Steel Sheet

Unpropped Span:

4.5 Metres

Propped Span:

6.8 Metres

Highlight:

galvanized steel composite floor deck

60 profile floor deck 1mm thick

steel floor deck with warranty

Product Description

Galvanized Steel Composite Floor Deck Metal Decking Slab Comflor 60 Profile Equivalent

Product Specifications

Attribute	Value
Warranty	1 Year
After-sale Service	Online technical support
Material	Galvanized steel GB US EU AS std.
Type	Corrugated
Zinc Coating	275g/m²
Thickness	1mm
Surface	Spangle
Applications	Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Warehouse, Workshop

Product Description

The ComFlor 60 series composite floor profile equivalent offers lightweight steel decking for multi-rise buildings, combining exceptional spanning capabilities with reduced concrete usage for a cost-effective floor solution. Developed using modern roll-forming techniques, it features:

Unpropped continuous spans to 4.5 metres
Propped spans to 6.8 metres
Exceptional resistance to compressive buckling
Superior span capability compared to traditional decks
Central stud placement and closed ends
Enhanced health and safety features

Technical Specifications

Parameter	Specification
Base Material	Hot Dipped Galvanized Steel Sheet
Steel Grade	SGCC
Yield Strength	Q235 or Q345 (GB/T1591-2008)
Thickness Range	0.8 - 1.5mm (standard: 0.8, 1.0, 1.2)
Zinc Coating	60-275g/m²
Wave Height	51mm-76mm
Effective Width	688mm-940mm
Length	0-11.8m

Available Profile Types

Closed Type: YXB51-200-600, YXB65-186-558, YXB60-253-760, YXB60-180-540
Opened Type: YX75-230-690, YX75-200-600, YX38-152-915, YX51-305-915
Swallow Tail Type: YX51-200-600, YX51-190-760, YX51-200-800

Key Advantages

Greater Durability: Z275-350 zinc-coating provides superior corrosion protection
Unbeatable Strength: Lighter and stronger than conventional slabs with excellent tensile reinforcement
Cost Savings: Reduces need for propping/temporary formwork and lowers foundation costs
Fast Construction: Adapts to rapid construction requirements of steel structures
Fire Proof: Can span long distances without middle propping

We welcome international clients to inquire about our products and visit our facilities.
