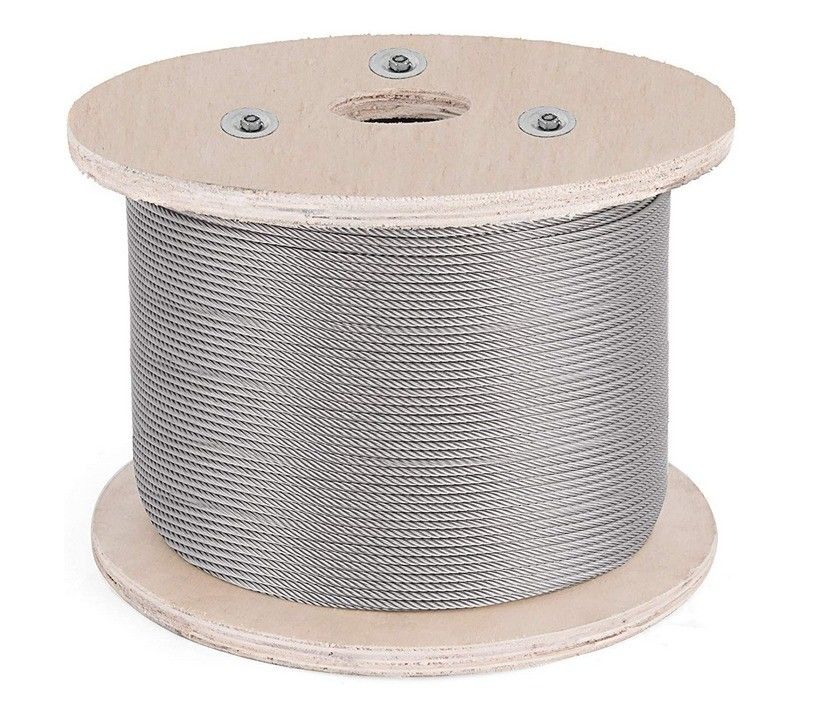

6x12+7FC Stainless Steel Wire Rope 304/316, 3-18mm, 1000m/reel

Brand Name:	Honghao
Model Number:	HHZN2025055
MOQ:	2000Meters
Price:	Negotiable
Packaging Details:	In Plastic Reel Or In Wooden Reel
Payment Terms:	T/T or L/C,paypal

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu

Certification:

ISO,CE

Standard:

Grade:

300 Series

Length:

500m/reel,1000m/reel Or Other, As Per Your Request.

Application:

Construction

C Content (%):

<0.08%

Si Content (%):

Tolerance:

Processing Service:

Other

Steel Grade:

304, 304L, 316, 316L, Customization

Surface Finish:

Other

Delivery Time:

15-21 Days

Certificate:

ISO9001/ISO14001

Product Name:

Stainless Steel Wire Rope

Construction:

6x12+7FC

Material:

Stainless Steel 304/316

Diameter:

3-18mm

Surface Treatment:

Brightness

Type Of Core:

Fiber Core

Package:

Wooden Spool

Supply Ability:

50000Tons/Month

Highlight:

DIN/RR-W-401 Stainless Steel Wire Rope

6x12 Stainless Steel Wire Rope

Product Description

6x12 7FC Inox Cable DIN/RR-W-401 Steel Cable Stainless Steel Wire Rope 6*12 SS304 SS316 Stainless Rope Length 1000m/reel

Product Specifications

Place of Origin: China
Brand Name: HONGHAO
Product Name: Stainless Steel Wire Rope
Constructions: 6x12+7FC
Available Constructions: 1x3, 1x7, 1x19, 1x37, 6x7+IWS, 6x19+IWS, 7x37, 19x7, 6x19S+FC, 6x19S+IWRC, 6x19W, 6x25Fi, 6x26WS, 6x31WS, 8x19S, 8x19W, 8x25Fi, 8x26SW etc.
Material: Stainless steel 304, 316, 304L, 316L etc.
Diameter: 3-18mm
Surface treatment: Polished
Length: 1000m/reel, 2000reel or as per customer's requirements
Lay: Right hand regular lay or left hand regular lay
Nominal tensile strength: 1370MPa, 1570MPa
Types of core: Fiber core
Feature: Good corrosion, heat and cold resistance
Application: Chemistry, fisher boat, automobile, aircraft, hardware used in family or stores.
Packaging: Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box, or as per customer's requirements

Technical Details

1. Stainless steel wire rope

These are normally made of AISI 302/304 or AISI 316. AISI 302/304 offers higher breaking strength. AISI 316 offers better electrolytic corrosion resistance which makes it more suitable for marine applications.

2. The grade of the wire is the minimum breaking strength.

The most common grades used are: 1470 N/mm², 1570N/mm², 1770 N/mm². Other grades are used for some special applications.

3. The core:

Fiber Core (F.C.), usually polypropylene (P.C.), (H.C.) and sisal. Independent Wire Rope Core (IWRC) Wire Strand Core (WSC) IWRC and WSC are sometimes referred to as steel wire core or steel center.

4. Construction:

Expressed in numbers of strands x number of wires. For example: 6 x 25 indicates that the wire rope consists of 6 strands, which in turn have 25 individual wires.

5. Lay:

Right Regular Lay (RRL); Right Lang Lay (RLL); Left Regular Lay (LRL); Left Lang Lay (LLL)

Construction and Application

1. 6×7+FC,6X7+IWRC, 6×19+FC,6X19+WIRC, 6×37+FC, 6X37+IWRC for cable car, cableway towing, slope hoisting, ship, lifting, towing etc.

2. 6×12+7FC,6×15+7FC,6×24+7FC for tow boat, goods net, floating transportation of wood and lashing etc.

3. 6×19S+FC,6×19S+IWR, 6×19W+FC,6×19W+IWR, 6×5Fi+FC,6×25Fi+IWR, 6×9Fi+FC,6×29Fi+IWR, 6×26SW+FC,6×26SW+IWR, 6×31SW+FC, 6×31S+IWR, 6×36SW+FC,6×36S+IWRC for various equipment for hoisting, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.

4. 18×7+FC,18×7+IWS, 18×19+FC,18×19+IWS 18×19+FC,18×19+IWS 4V×39S+5FC which are suitable for vertical well drilling hoisting, cage channel of vertical well drilling, port load and unload, and tower crane.

5. 6×3×7, 7×7×7, 7×7×19 for cable of chain lock and flexible occasion.

6. Wire Rope For Elevator 6×19S+NF, 8×19S+NF,6X19S+IWRC,8X19S+WIRC

7. Galvanized Aircraft Cable 1×7, 1×19, 6×+FC,6×7+IWS,6×19+FC,6×19+IWS for aircraft purpose.

Standard: GB/T8918-1996, GB 1102-74, SC 1443-86, ISO, BS, DIN, JIS, API and RRW-410D and Other.

We can supply steel wire ropes of many specifications with various surface to meet customers' needs.

Company Information

More than 20 years of export service company

Chongqing Honghao Technology Co., Ltd. is a private enterprise, we are professional manufacturer of steel wire rope for more than 20 years.

We mainly supply and manufacture galvanized aviation-use steel ropes with various structures and specifications, brake wires for cars, motorcycles and bicycles, stainless steel ropes, non rotating steel ropes, elevator wire ropes, and wire ropes for special uses. Our current annual output is 4,000 tons of galvanized steel ropes. Backed by comprehensive production equipment, advanced testing instruments, and experienced staff, we guarantee reliable product quality.

Today, our customers are in more than 60 countries in the European Union, North America, South and Central America, the Middle East and Southeast Asia.

Certifications

Our company is a Chinese Gold Plus supplier jointly certified by Alibaba.com and Intertek merchants, you can completely trust us.

Ordering Information

In ordering steel wire rope, you are requested to give us complete information as specified below:

Information Required	Details
Purpose	For which rope will be used
Size	Diameter of the rope in millimeter or inches
Construction	Number of strands, number of wires per strand and type of strand construction
Type of Core	Fiber core(FC), independent wire rope core(IWRC) or independent wire strand core(IWSC)
Lay	Right regular lay, left regular lay, right lang lay, left lang lay
Coating	Bright(ungalvanized), galvanized or stainless, PVC or Grease
Grade of wire	Tensile strength of wires
Breaking Load	Minimum or calculated breaking load in tones or pounds
Lubrication	Whether lubrication is desired or not, and required lubricant
Length	Length of wire rope
Packing	In coils wrapped with oil paper and hessian(orp.p) cloth, or on wooden reels
Quantity	By number of coils or reels, by length or weight
Remarks	Shipping marks and any other special requirement
